Quad Crossover Canopy

Quad Crossover Canopy

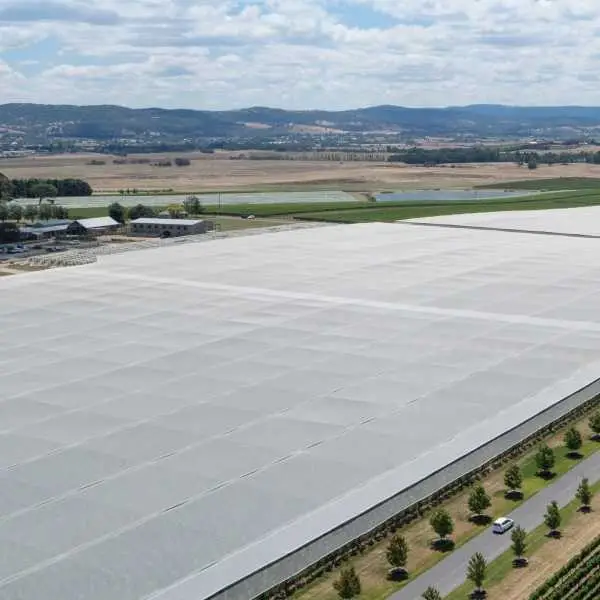

Quad Crossover Net is  suitable for permanent structures over pip fruit, vineyards, kiwi fruit, apple and cherry orchards They provides an advanced degree of protection from hail storms, birds, and also creating an enhanced micro-climate.

The strong high-density polyethylene fabric won’t rot or absorb moisture.

certification

Description

DESCRIPTION:

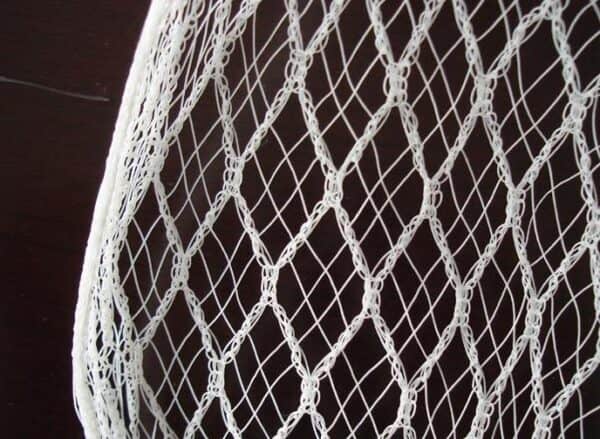

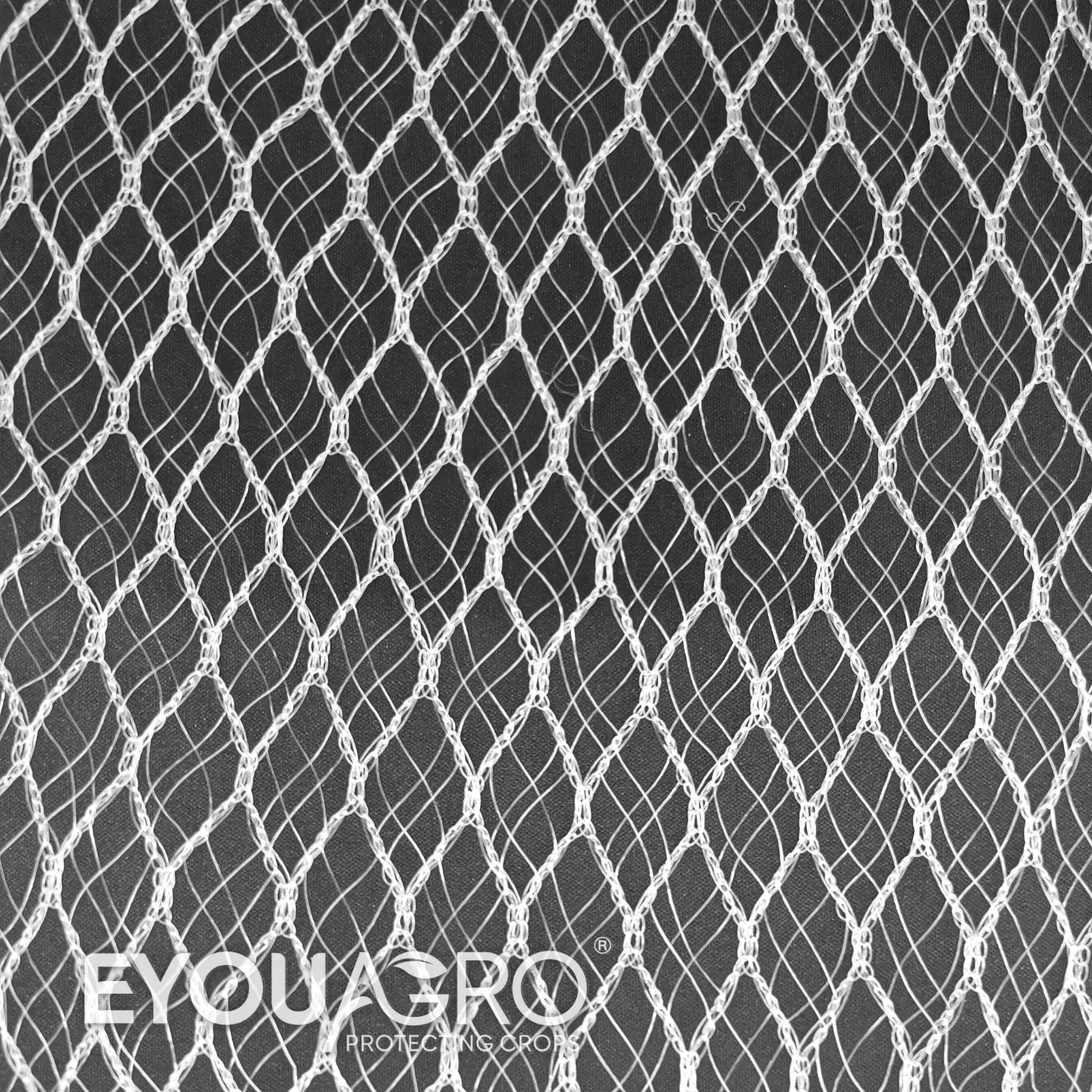

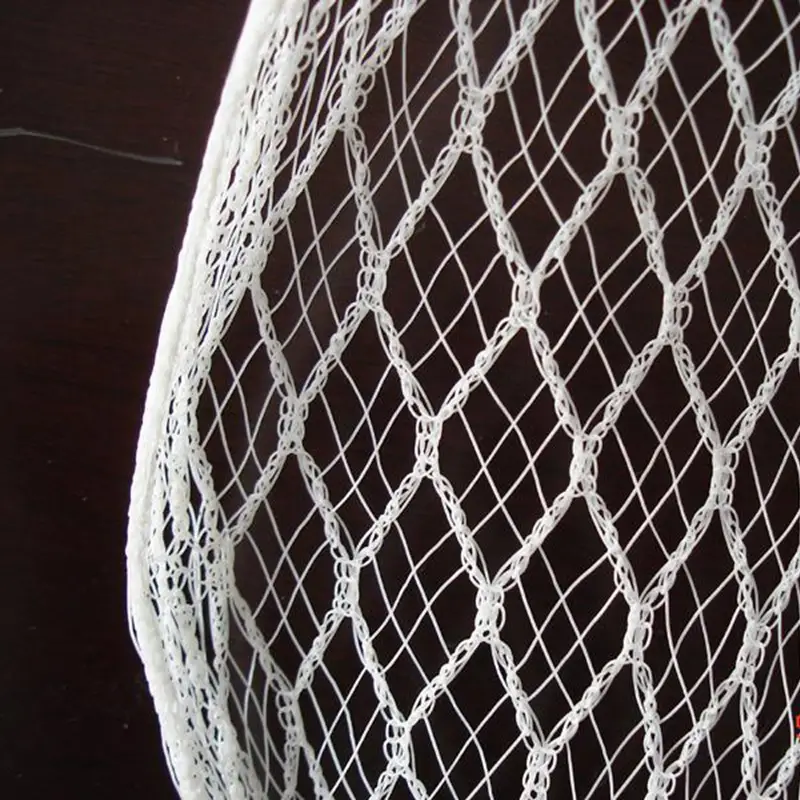

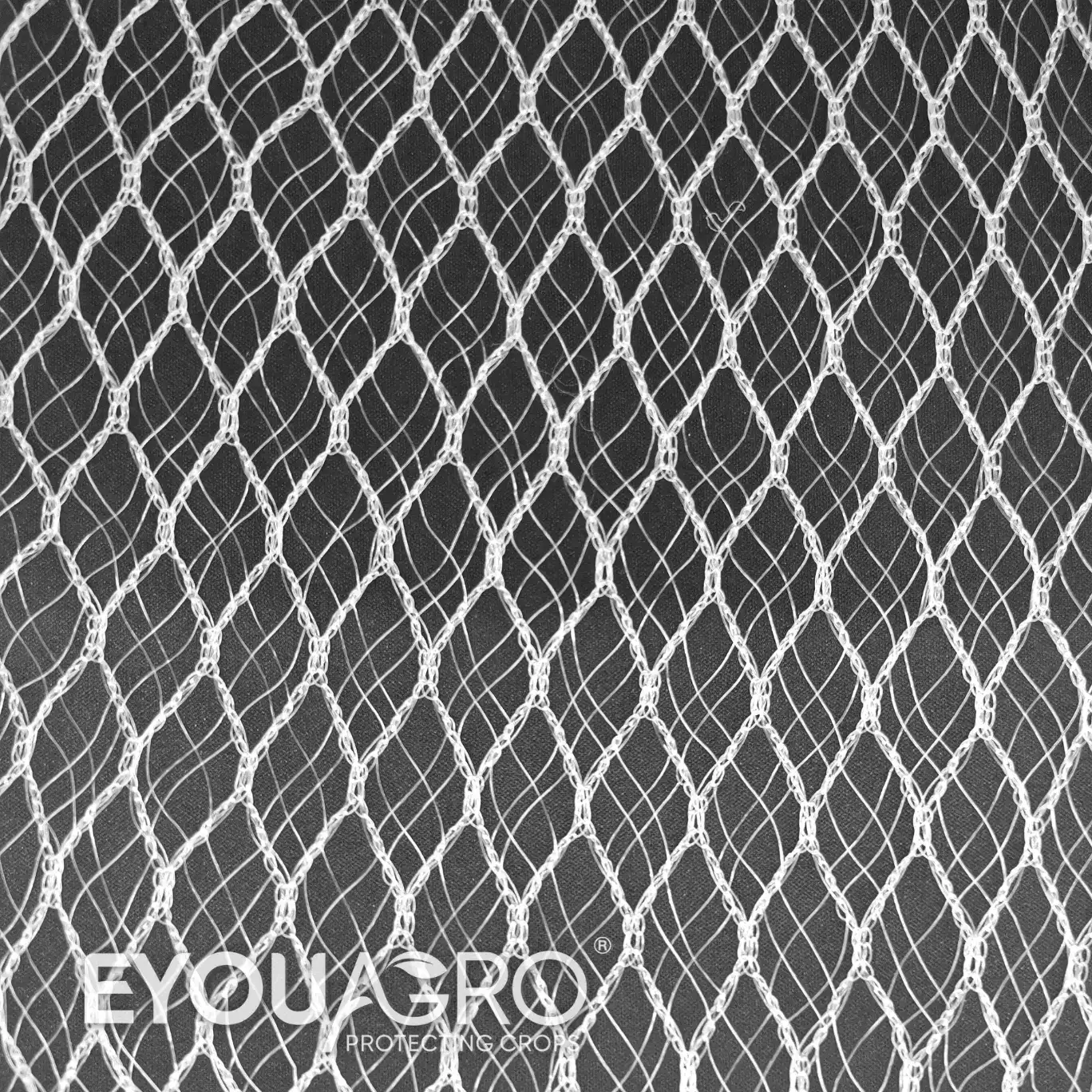

Quad Crossover Net innovative diamond lock-stitch with four-yarn crossover deters even the smallest birds and protects crops against damaging hail storms.

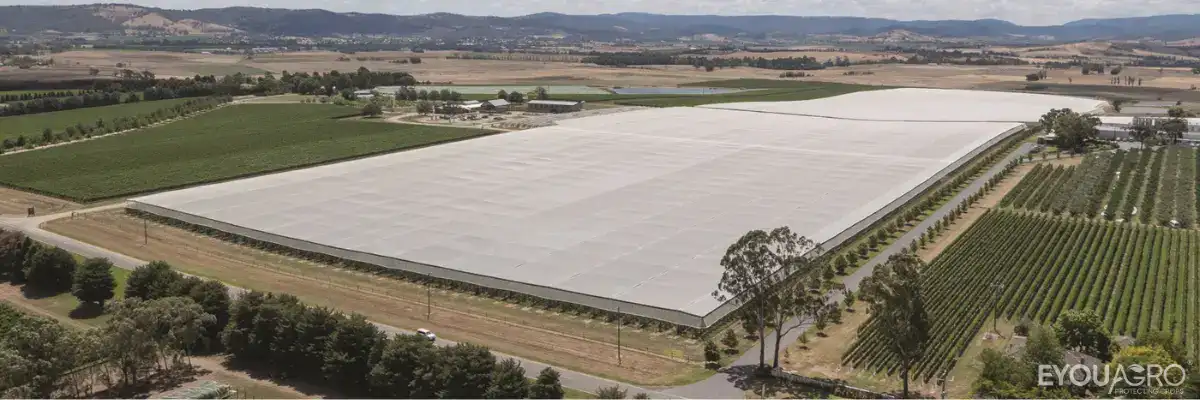

Crossover net is also suitable for permanent structures over pip fruit, vineyards, kiwi fruit, apple and cherry orchards. Its wide widths and stretch make it more suited to permanent structures than narrower width nets.

Quad Net provides an advanced degree of protection from hail storms, birds, and also creating an enhanced micro-climate.

The strong high-density polyethylene fabric won’t rot or absorb moisture.

Meanwhile, the canopy created by the Quad Crossover fabric creates a micro-climate promoting plant growth and reducing transpiration evaporation and ‘spray drift’. This can help save water.

Feature

  • Strong HDPE fabric won’t rot or absorb moisture
  • Diamond lock-stitch with 4 yarn crossover to deter the smallest birds
  • The canopy creates a micro climate underneath
  • Reduction edge and centre for ease of handling
  • Reducing transpiration evaporation and ‘spray drift’
  • Supplied in a woven polypropylene bales for easy transportation and storage
  • Ten (10) year pro rata warranty against product failure due to ultra-violet light degradation (conditions apply)

Available Type:

Specification:

Product No. Mesh Size Weight Yarn Dia  Shade  Width Windbreak Porosity UV
[mm] [g/m2] [Denier] Black White [m] Value Warranty
8mm Quad 8x8mm 118 500 40% 27% 6 -8 -10 -12 – 14 -16 27% 73% 10 years

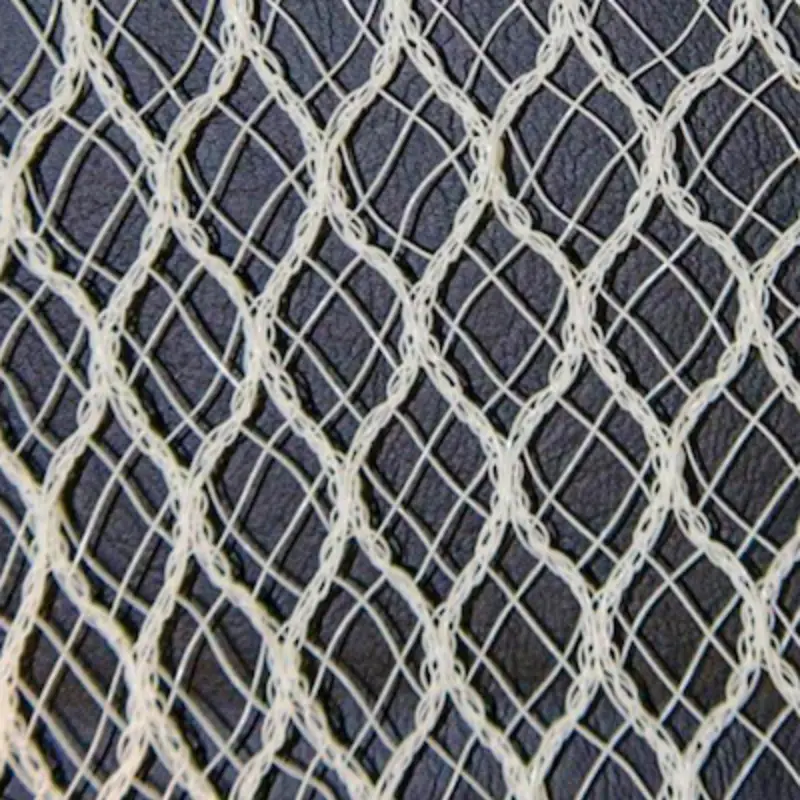

12mm Quad 12x12mm 100 500 30% 16% 6 -8 -10 -12 – 14 -16 16% 84% 10 years

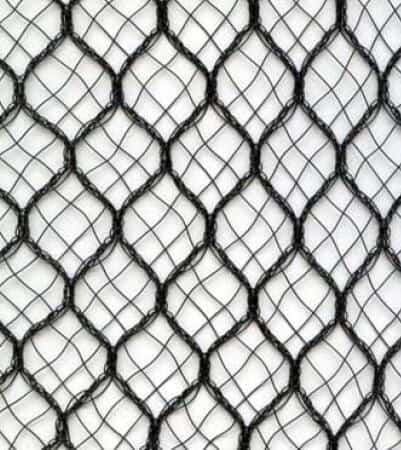

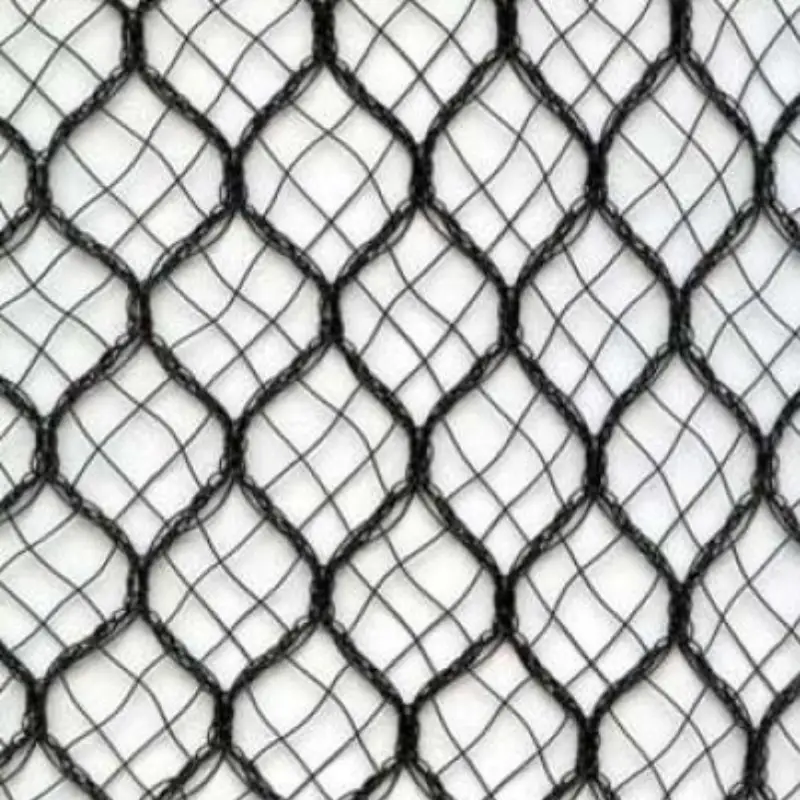

16mm Quad 16x16mm 85 500 25% 14% 6 -8 -10 -12 – 14 -16 14% 86% 10 years

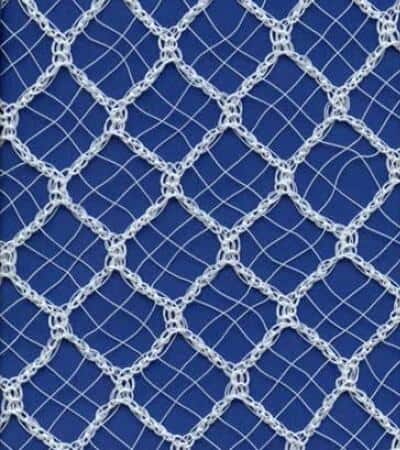

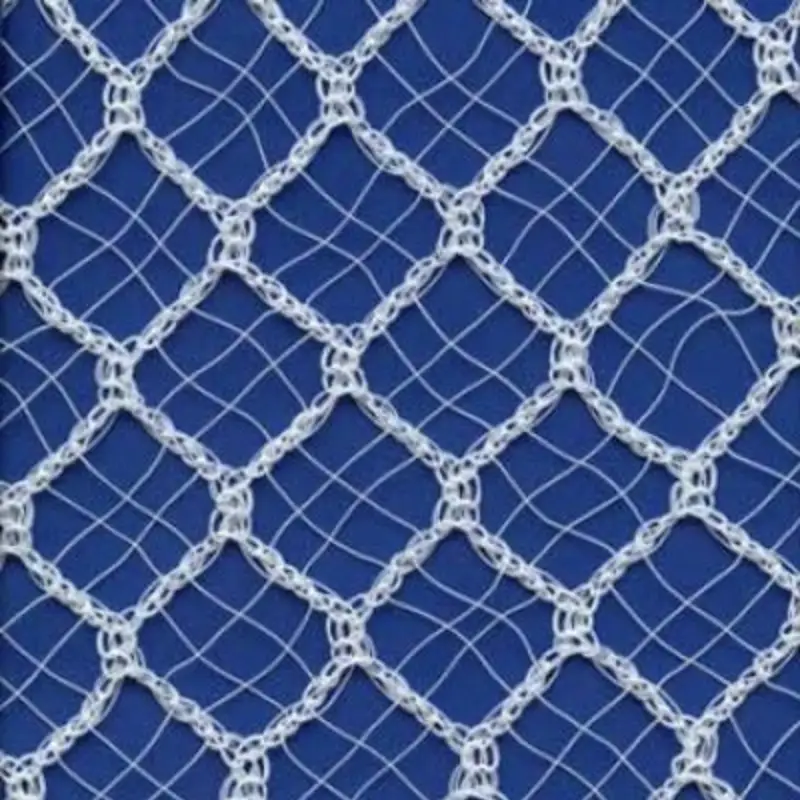

20mm Quad 20x20mm 70 500 21% 12% 6 -8 -10 -12 – 14 -16 12% 88% 10 years
28mm Quad 28x28mm 56 500 18% 9% 6 -8 -10 -12 – 14 -16 9% 91% 10 years



Application & Benefit:

  • Overhead Wind Protection
  • Overhead Canopies for shade
  • Bird Protection
  • Reduction in Evaporation creating a Micro Climate under the Canopy
  • Reduction in Sunburn
  • Reduction in Transpiration Evaporation

Additional information

Material

100% Virgin High Density Polypropylene with UV additives

Fabric Structure

Monofilament Raschel Knitted

Color

White, Black

UV Stability

700KLY

Warranty

10 Years pro rata warranty
