Introduction
Most growers focus on choosing shading percentages—30%, 40%, or 50%.
But real-world results show a more important truth:
The success of shade cloth depends more on installation and management than on shading percentage alone.
A well-installed system helps tomatoes avoid heat stress, lowers leaf temperature, reduces cracking, and stabilizes fruit quality.
A poorly installed system can trap heat, raise humidity, and even make cracking worse.
This guide explains how to install and manage shade cloth correctly, using height, ventilation, and irrigation adjustments that match the physiology and microclimate needs of tomatoes.

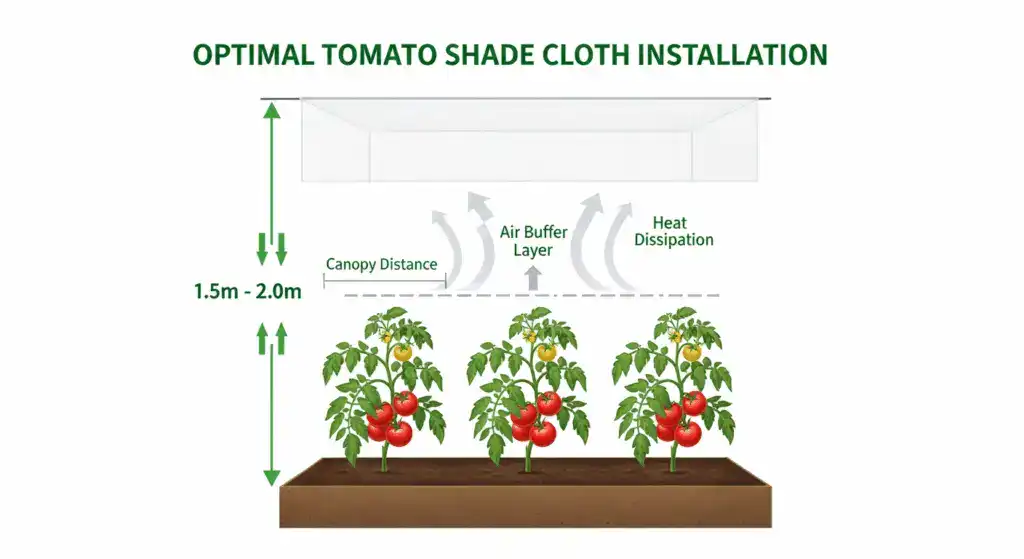

Optimal Shade Cloth Height for Tomatoes (Ideal: 1.5–2.0 m)
Why Installation Height Matters (Scientific Basis)
Shade cloth must form a ventilated air buffer layer above the tomato canopy. If cloth sits too close, hot air accumulates directly above the plants, increasing temperature and humidity.
Recommended Height
- 1.5–2.0 m above ground, or
- 1.0–1.5 m above crop canopy
This provides enough space for upward airflow and prevents heat from radiating back onto the plants.
Why the Height of 1.5–2.0 m Works Best
Research and field observations consistently show that a 1.5–2.0 m installation height creates an ideal air-buffer microclimate layer between the net and the tomato canopy. This buffer zone:
- Slows down heat transfer
- Reduces leaf and fruit surface temperature
- Improves horizontal airflow
- Stabilizes humidity and reduces condensation risk
When the shade cloth is installed too low (below 1.2 m), the microclimate becomes stagnant, leading to:
- Humidity buildup
- Reduced air exchange
- Higher fungal disease pressure
When installed too high (>2.5 m), the shade effect becomes less efficient, and cooling benefits significantly weaken.
Field conclusion: The 1.5–2.0 m distance is the “sweet spot” that balances cooling, diffusion, and airflow.
Problems Caused by Installing Shade Cloth Too Low
When the gap is insufficient:
❌ Heat becomes trapped above the canopy
❌ Humidity rises to 80–90%
❌ Air movement collapses
❌ Leaves stay wet longer → fungal disease risk increases
❌ Cracking will NOT improve
❌ Temperature can actually increase under shade
Growers often describe this as: “It looks shaded, but feels hotter and wetter.”
Issues When Cloth Is Installed Too High
If the cloth is installed too high:
❌ Effective shading decreases
❌ Sunlight leaks from edges
❌ Cloth swings more under wind load
Height Recommendations for Different Scenarios
- Open-field tomatoes: 1.8–2.2 m
- Greenhouse roof shading: 0.5–1.0 m above the roof structure
- Windy regions: 2.0–2.5 m with reinforced anchoring
Ventilation Strategy Under Shade Cloth (Cross-Ventilation Required)
Correct ventilation is the second pillar of shade management.
Even if shade reduces sunlight, poor ventilation will trap heat, raise humidity, and lead to higher disease pressure.
Why Cross-Ventilation Is Essential in Hot Climates
Cross-ventilation ensures:
✔ Hot air escapes quickly
✔ Fresh air enters the canopy layer
✔ Leaf temperature remains stable
✔ Humidity does not exceed critical levels
✔ Blossom drop and cracking are reduced
Without it, shade cloth often backfires by creating humid micro-pockets.
Ventilation Behavior in Different Shade Installation Structures
Elevated Shade Structure (Best Ventilation)
Shade cloth mounted 0.5–1.0 m above greenhouse roofs or poles.
Pros:
✔ Best natural convection
✔ Lowest canopy temperature
✔ Ideal for hot climates
Cons:
▪ Slightly higher installation cost
Roof-Level Shading (Common but Requires Vent Management)
Shade cloth rests directly on the greenhouse frame.
Pros: ✔ Easy and affordable installation
Cons:
❌ If sidewalls stay closed → humidity spikes
❌ Heat builds up during midday
❌ Requires active venting
Essential Add-ons:
- side vents
- ridge vents
- at least one dominant airflow corridor
Partial Shading (Top + West Side)
Provides shading while preserving airflow.
Pros:
✔ Lower temperature
✔ Maximum ventilation
✔ Cost-effective
Best for:
- windy regions
- budget-constrained farms
- areas susceptible to overheating under full cover
Cross-Ventilation — A Must in Hot Regions
Why Cross-Ventilation Is Non-Negotiable in Hot Regions
In hot climates (>32°C), shade cloth reduces temperature but also reduces upward air movement.
This makes cross-ventilation essential for:
- Removing accumulated heat under the net
- Preventing humidity buildup
- Maintaining VPD balance
- Reducing disease pressure
Practical Cross-Ventilation Guidelines
- Maintain at least two open windward sides
- Avoid full enclosure (especially in humid zones)
- Where wind is weak, raise side panels by 20–40 cm
- For greenhouses: combine side vents + roof vents
- In extreme heat: use forced ventilation or intermittent misting
Rule of thumb: If shade cloth lowers temperature but humidity rises → adjust ventilation immediately.
Irrigation Adjustment After Shading (Reduce 15–25%)
Shading significantly reduces evapotranspiration (ET) because plants lose less water through leaves.
How Shade Cloth Reduces ET (Evapotranspiration)
Shade cloth reduces both solar radiation and leaf surface temperature, which directly lowers ET. Typical reductions:
- 15–25% ET reduction in hot-dry climates
- 10–20% in temperate regions
- 5–15% in mild greenhouse environments
Practical Irrigation Guidelines
After installing shade cloth, adjust irrigation as follows:
- Reduce drip irrigation volume by 10–20% initially
- Monitor soil moisture daily for 4–7 days
- Increase irrigation frequency but reduce per-event volume during heat waves
- Avoid heavy evening irrigation, especially in humid climates
Shade stabilizes moisture but does not eliminate water stress risk — management must be proactive.
When ET decreases, irrigation MUST decrease too.
If you irrigate as before:
❌ root zone stays too wet
❌ fruits become soft
❌ cracking increases
❌ disease pressure rises
How Much Should Irrigation Be Reduced?
A practical starting adjustment:
- Reduce total irrigation by 15–25%
- Apply more water in the morning
- Avoid large evening irrigation (increases disease)
- Use smaller, more frequent cycles
Stable moisture = fewer cracking events.
Why Moisture Stability Is More Important Than Total Water Volume
Tomatoes crack when:
- a dry root zone suddenly becomes wet
- fruits expand faster than skins can adapt
- water fluctuations accelerate internal pressure changes
Shading stabilizes canopy temperature— but improper irrigation can override all benefits.
Microclimate Differences Between Installation Structures
Comparing Different Shade Cloth Structures
High-Canopy System (Best for Heat-Mitigation)
Height: 1.7–2.0 m Benefits:
- Strongest cooling
- Best airflow
- Ideal for hot & dry climates
- Reduces cracking & sunscald
Used widely in: Australia, Mexico, Spain south.
Flat Top Structure (Common for Greenhouses & Mild Regions)
Height: 1.3–1.5 m Benefits:
- Easy to install
- Suitable for moderate temperatures
- Effective for uniform shading
Risk:
- Can trap humidity if ventilation is poor
Side-Shade + Top-Shade Hybrid System (Best for Humid Climates)
Benefits:
- Improves side ventilation
- Reduces condensation
- Minimizes fungal disease risk
Essential for:
- China South, SEA, Brazil coast
- Any region with low VPD
Humid climates require side ventilation more than extra shading.
Comparing Common Shade Installation Structures (Quick Guide)
| Installation Method | Temperature | Ventilation | Cost | Best Use Case |
| Elevated Shade | ★★★★★ coolest | ★★★★★ best | $$$ | Hot regions, large farms |
| Roof-Level Shade | ★★★ moderate | ★★ limited | $$ | Basic greenhouses |
| Top + West Side | ★★★ good | ★★★★★ excellent | $ | Windy regions, limited budget |
Troubleshooting Installation Problems & Their Solutions
Problem 1 — Shaded Area Feels Hot and Humid
Causes:
- Shade too low
- Poor ventilation
- Overly dense cloth
Solutions: ✓ Raise the cloth ✓ Add side or top ventilation ✓ Switch to white or reflective shade cloth
Problem 2 — Diseases Increase After Shading
Causes:
- Irrigation unchanged despite reduced ET
- Evening watering
- Poor airflow
Solutions:
✓ Reduce irrigation 15–25%
✓ Water early in the morning
✓ Improve ventilation corridors
Problem 3 — Cracking Continues Even After Shading
Causes:
- Water fluctuations
- Shade density incorrect
- Soil too wet or too dry between cycles
Solutions:
✓ Apply small, frequent irrigation
✓ Maintain uniform soil moisture
✓ Confirm cloth density is correct (30–40%)
Practical Field Tips for Better Shade Cloth Performance
- Tighten shade cloth to avoid “sunlight leaks”
- Add tension cables every 2–3 meters in windy zones
- Use anti-UV black clips only — white clips degrade faster
- Avoid installing during midday (fabric expands under heat)
- Re-tension nets after the first week
FAQ — Installation Questions from Growers
Q1. What is the ideal distance between shade cloth and the canopy?
About 1.0–1.5 m to create a stable air buffer layer.
Q2. Do I always need to reduce irrigation after shading?
Yes—typically by 15–25% depending on climate.
Q3. Should cross-ventilation be a priority?
Absolutely. Without strong airflow, shading becomes counterproductive.
Q4. Should I fully cover my tomato field?
Not always. Partial shading (top + west side) often balances cooling and ventilation.
Q5. How often should installation be adjusted?
At least once per season, and during fruiting, adjustments may be needed weekly.
Conclusion
The best tomato shade cloth system is not just about fabric—it’s a microclimate engineering tool.
A successful installation uses three coordinated elements:
✔ Optimal height
✔ Strong ventilation
✔ Adjusted irrigation
When all three align, tomatoes stay cooler, healthier, and more productive through the hottest months of the year.
