Vineyard Netting Hub: Protection, Microclimate Control & Yield Stability
From simple drape nets to advanced side-netting systems.
Discover how to stop crop loss, enable mechanization, and control ripening with the right physical barrier.
- Used by Top Wineries
- Mechanization Ready
Send us your row spacing and grape variety. We’ll recommend the perfect mesh.
Vineyard Protection Systems: Birds, Hail & Microclimate
Modern vineyard netting is not just “pest control.” It’s a system decision that affects yield stability, fruit quality, and operational efficiency.
Bird Pressure → Direct Crop Loss
Prevent pecking damage and reduce harvest volatility with right netting system.
- Choose mesh for target species
- Optimize access for harvest
Hail Heat Waves → Yield Volatility
Hail protection and climate moderation in one integrated structure.
- Match weave to structure
- Design for tension + drainage
Insects & Disease Pressure
Mesh and airflow balance: exclusion without microclimate penalties.
- Ventilation-first selection
- Compatibility with sprays
The 4 Core Decisions for Vineyard Netting
Use this sequence to avoid mismatched nets, installation issues, and “microclimate surprises.”
Birds, Hail, Sunburn, Insects
Define what you’re excluding (and the acceptable airflow/light change).
Drape / Side / Overhead
Your system decides net shape, tension points, and maintenance workload.
Raschel vs Leno + HDPE
Select durability, stretch behavior, and UV stability for your structure.
Airflow, Humidity, Light Spectrum
Keep vine physiology and disease pressure in balance under netting.
Modern vineyard protection has evolved. While birds (Starlings, Sparrows) remain the #1 enemy causing 10-100% loss, growers now face a multi-front war.
Direct fruit damage, harvest losses, and quality downgrade.
High-impact events causing sudden season-wide losses.
Heat stress, pigment imbalance, berry softening risk.
Exclusion requires airflow-aware mesh selection.
Pick specs by threat first — then choose the weave that matches your handling system
| Threat / Target | Mesh / Aperture | Shade Rate | Best Weave / Notes |
|---|---|---|---|
| Birds (general) Direct peck damage → rot & downgrade | 15–20mm | ≈ 5% | Raschel (Diamond) • flexible for drape systems |
| Small birds (silvereye) Small body size → needs tighter aperture | 8–12mm | 10-15% | Raschel (Triangle) • better closure with minimal sag |
| Hail + wind load Impact + tension → structure must carry load | 5–8mm | ≈ 15% | Leno (woven / non-stretch) • best for permanent systems |
| Sunburn / heat stress Fruit surface temp + UV → quality losses | 2-5mm | ≈30-50% | Shade/photo-selective • choose by climate + fruit target |
| Insects (SWD) — Fine mesh Exclusion depends on sealing + airflow balance | 0.8–1.0mm (≈ 17–25 mesh) | 10-15% | Woven fine insect net • plan for ventilation & access points |
Pro Tips: Raschel vs. Leno (Keep it simple)
Raschel (Knitted) = softer, elastic, easier to drape — ideal when you need fast seasonal handling.
Leno (Woven) = rigid, non-stretch, holds tension — best for hail & permanent structures (less distortion under load).
Woven Fine Mesh works only when edges are sealed — airflow losses usually come from poor layout, not “mesh on paper”.
NEXT STEP
Not sure which spec matches your threats?
Tell us your threats + row spacing. We’ll recommend the system and the exact spec.
Choose by your primary goal first, then verify compatibility with your system + climate.
Bird Control
Stop bird damage while keeping harvest access manageable.
Hail Protection
Impact absorption, structure-fit, and seasonal resilience.
Insect Exclusion
Exclude pests with a microclimate-safe mesh strategy.
Shade & Heat Management
Reduce sunburn risk while balancing airflow and PAR.
Photoselective / Color Nets
Modify light spectrum for quality and ripening control.
Quick Fit: What are you protecting?
- Birds near harvest? Start with bird protection.
- Hail zones? Prioritize impact-ready systems.
- Hot–dry climates? Add shade + diffusion.
- Disease vectors? Add insect exclusion.
- Premium quality goals? Add photoselective nets.
Most vineyards need a “priority stack”, not a single net.
Rank risks by economic impact (frequency × severity), then design a system covering the top risks first, while keeping airflow and operations stable.
NEXT STEP
Not sure which function matters most in your vineyard?
Send your grape variety, trellis style, and main threats — we’ll recommend the best net system and protection stack.
Systems change everything: tension points, mechanization, maintenance, and net life.

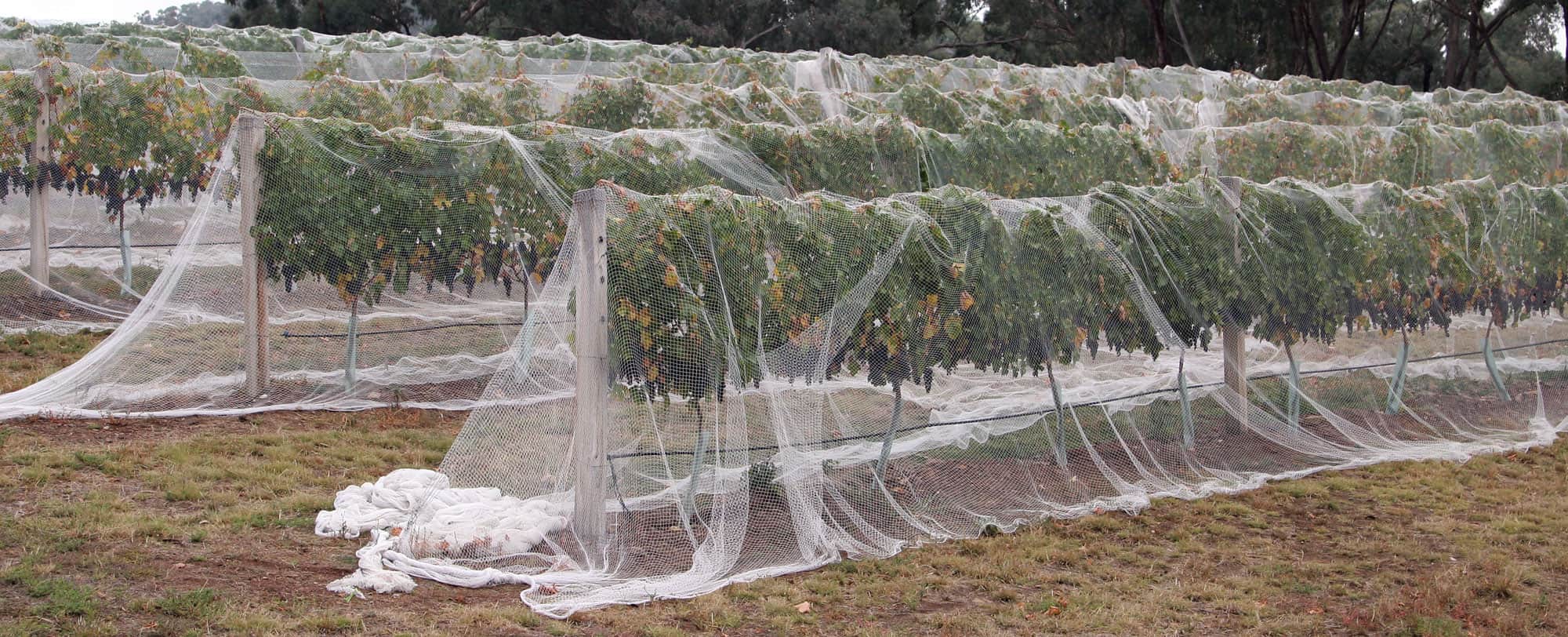

Drape Netting
The net is draped directly over one or more rows. Secured at the bottom with clips or soil.
- Lowest Material Cost
- High Annual Labor (Install/Remove)
- Limits mid-season spray/pruning
Side / Zone Netting
Covers only the fruiting zone. Stays on the wire all year (rolled up during winter).
- Mechanization Friendly
- Excellent Airflow & Spraying
- Low Annual Labor Cost
Overhead Canopy
A roof structure over the entire vineyard. Like a “house” for your vines.
- Ultimate Microclimate Control
- Zero machinery restriction
- High Capital Investment

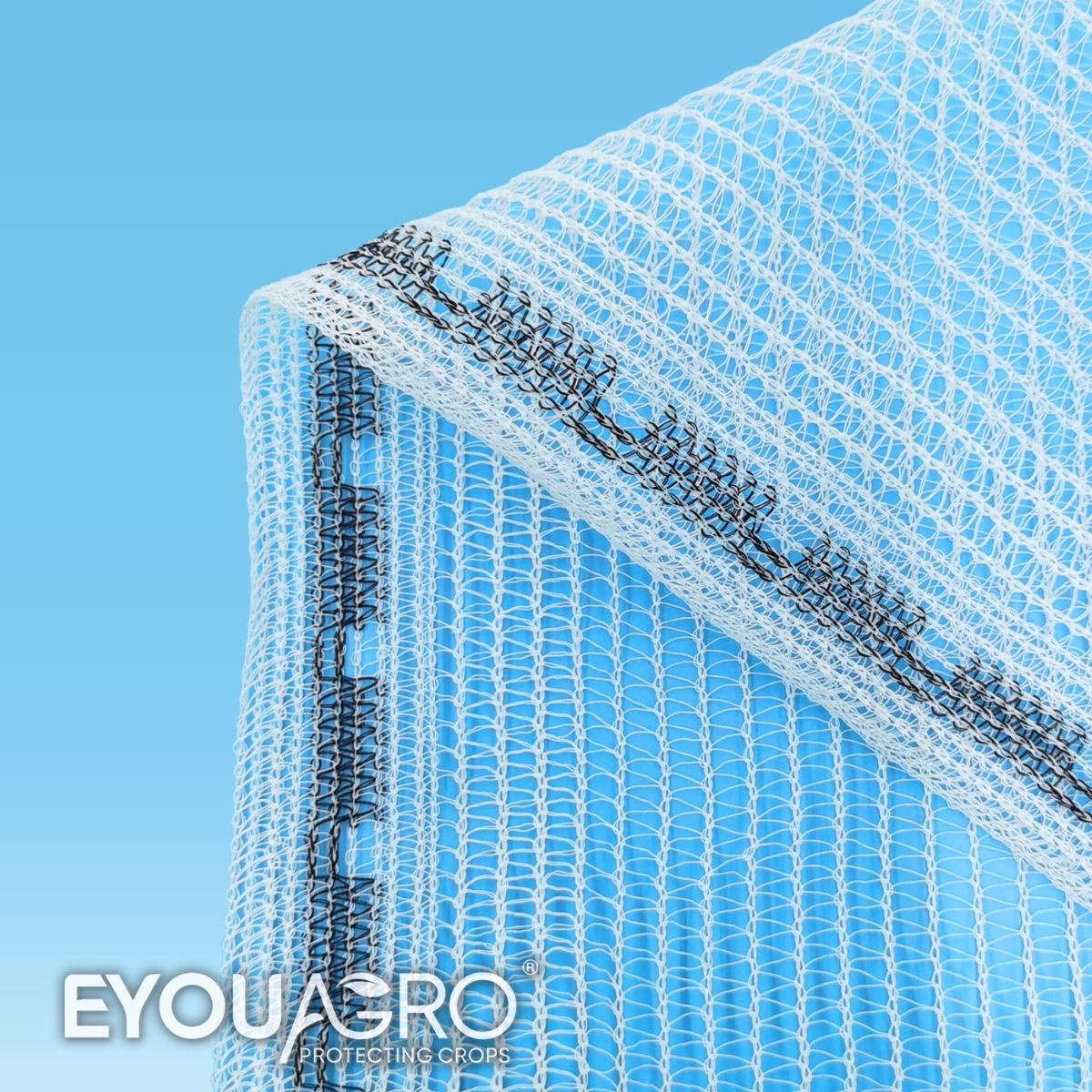

Upgrade to Vineyard Side Netting
Stop wrestling with drape nets every year. Our reinforced Side Netting system stays on your trellis wire, allowing for mechanization and easy harvest access.
- Reinforced Edges
- Custom Width (0.75m - 1.2m)
- 10-Year UV Warranty
- Clip Compatible
HDPE performance depends on UV stabilization, weave behavior, and how the net is tensioned and stored.
HDPE + UV Stabilization (HALS)
HALS protects polymer chains from UV-driven degradation, extending usable net life.

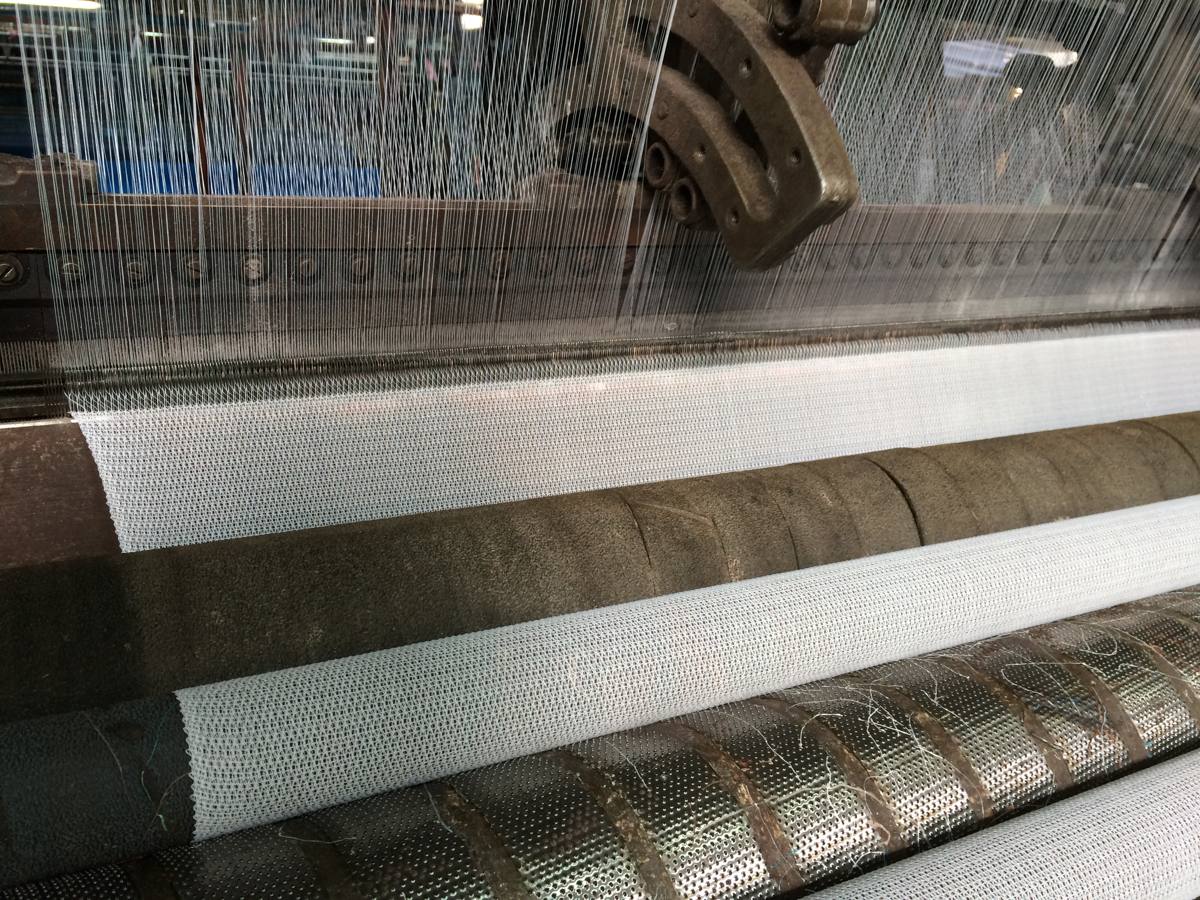

Raschel vs Leno (Stretch + Stability)
Weave choice impacts tension distribution, tear resistance, and long-term shape retention.
| What to Check | Why It Matters | What to Ask Suppliers |
|---|---|---|
| UV & warranty terms | Determines strength retention in high-UV regions | Is HALS included? Which grade? |
| Weave type + gsm | Affects tear propagation and fatigue under wind load | Raschel/Leno/Extruded—what is used and why? |
| Edge reinforcement & seams | Failure often starts at stress points | How are hems, seams, and reinforced edges built? |
Technical Insight
Warranty is only meaningful when it matches UV intensity + tension method.
If a supplier can’t answer HALS grade, weave logic, and edge build, the “UV years” claim is just marketing.
NEXT STEP
Need a durability spec sheet tailored for your vineyards?
Share your UV zone, lifespan goal — we’ll recommend material, HALS, weave, and edge reinforcement.
Netting influences airflow, temperature, humidity, and light distribution—sometimes more than growers expect.
Diffuse vs Canopy Light Direction
Diffuse light can reduce hotspots and improve canopy penetration depending on net design.
Heat Stress vs Ventilation Tradeoffs
Mesh + system architecture should protect without trapping humidity.
Field Note (Practical)
Photoselective vineyard nets are engineered to diffuse harsh radiation and selectively influence the light spectrum reaching the canopy. This helps manage ripening pace, support color development, and reduce heat stress without “over-darkening” the fruit zone—especially in premium blocks where consistency matters.
- Neutral shader. Delays sugar accumulation, allowing phenolic maturity to catch up.
- Best for hot climates to prevent “sugar/flavor mismatch”.
- Scatters light (diffusion). Penetrates deep into the canopy.
- Improves bud fertility and uniform ripening without heat stress.
- Modifies Red:Far-Red ratio.
- Can reduce vine vigor and enhance anthocyanin (color) production in red varieties.
Light diffusion
Smoother light distribution inside the canopy, fewer hot spots on berries.
Spectrum cues
Better alignment with ripening targets and fruit-zone comfort under heat-prone conditions.
Premium blocks
High-value blocks where quality consistency and timing are top priorities.
NEXT STEP
Not sure which color net fits your ripening and color target?
Share your region, variety, and goal (earlier ripening / deeper color / vigor control) — we’ll recommend the right photoselective color + shade rate for your block.
Keep this simple: quantify losses, compare to system cost, then choose a solution that matches your risk profile.
Deep dives for selection, installation, mesh guidance, UV durability, and performance tradeoffs.
A practical decision framework: function → system → material → accessories.
Mechanical properties, tear behavior, and long-term durability under wind load.
How UV stabilizers impact service life across climates.
Drape vs Side vs Overhead: Installation Tradeoffs
Workload, mechanization access, and durability implications.
How spectral tuning and diffusion work, when to use it, and what results to expect.
Mesh selection with ventilation-first logic for disease-sensitive sites.
How to Install Side Netting (VSP / Cane-Pruned)
Keep net off the ground and reduce stress points at edges.
Plan the install window to avoid fruit damage, reduce labor friction, and keep nets tensioned and clean.
A consolidated question bank for growers and distributors, ideal for quick checks and training.
NEXT STEP
Don’t see your exact scenario?
Tell us your vineyard size and risks — we’ll map the best route.
Short answers to the questions growers ask before investing in a netting system.
For deeper details, use the Spoke Library above.
Ready to Protect Your Vineyard?
EyouAgro provides factory-direct prices with world-class quality.
Share your vineyard size, row length, trellis type, and risk priorities.
We’ll recommend net type, system architecture, and an installation outline.
- 6-10 Years UV Warranty
- Custom Size & Cutting
- DDP Shipping Available
- Agronomy Support
