Introduction
Over the years working with growers, I’ve noticed that most insect netting failures—thrips slipping through, whiteflies entering greenhouses, or viruses spreading despite protection—usually come from one misunderstanding: choosing nets by mesh number instead of aperture size and pest morphology.
Once I began comparing the actual mesh aperture (µm) with the thorax width of different pests, the patterns became unmistakable. Pest exclusion is not guesswork or visual estimation—it is a mechanical interaction governed by microns.
Even tiny differences in aperture, as little as 30–80 µm, can determine whether exclusion succeeds or fails.
This article explains the core scientific principles I rely on when helping growers choose the right mesh size with confidence.
Why Pest Exclusion Is a Physics Problem, Not a Mesh Count Problem
Most growers are familiar with terms like 40 mesh, 50 mesh, or 80 mesh, but mesh count alone is not a reliable metric. The actual aperture size (mm or µm) determines whether pests can physically pass through, and this depends on both mesh count and yarn diameter.
Key scientific principle:
The 2-Line Law (Aperture Rule)
| Condition | Outcome |
|---|---|
| Aperture < thorax width | Exclusion is 100% (mechanically blocked) |
| Aperture > thorax width | Penetration is mechanically possible |
Technical Insight：
Most wrong purchases happen because buyers remember “mesh number” but forget this 2-line rule. If you only keep one principle from this article, keep this one.
Two nets with the same mesh count can behave very differently if woven with different yarn thicknesses. This explains why visual inspection alone—“this looks dense enough”—often leads to failure in real-world conditions.
The Physics of Penetration: How Insects Attempt to Cross Mesh
When insects encounter netting, they do not simply bounce off it.
What insects do at the net — and why it matters
| What insects do at the net | Why it matters for mesh selection |
|---|---|
| Probe with antennae | They actively search for the largest opening; small gaps become entry points |
| Align body to reduce profile | They don’t approach straight-on; sideways entry increases success rate |
| Compress soft abdominal tissue | Abdomen can deform; “looks small” is not a reliable test |
| Attempt sideways entry | Thorax width becomes the true pass/fail threshold |
Technical Insight：
If installation has wrinkles, seams, or loose edges, pests don’t “hit the net”—they exploit the biggest micro-opening. That’s why sealing and tension matter as much as the mesh choice
This biomechanical rule explains why thrips, despite being extremely small, can pass through openings that visually seem tiny. Conversely, large moths, even in windy orchard conditions, cannot pass through nets with 1.0 mm apertures.
NEXT STEPS
Continue Reading
Turn physics into a mesh spec you can buy.
How To Choose Insect Mesh Size (Step-by-step)
Translate aperture → target pests → airflow checks → finalize the right spec.
SWD Mesh Requirements
Aperture-first targets for SWD—tight control without collapsing ventilation.
Aperture Size vs Mesh Count: Why Micron Measurement Matters
The aperture size—not mesh count—is the decisive exclusion variable.
Mesh → Aperture conversion (what you should actually compare)
| Mesh | Aperture (mm) | Aperture (µm) | Practical meaning |
|---|---|---|---|
| 17 mesh | ~1.0 mm | 1,000 µm | Max airflow, blocks only large insects |
| 25 mesh | 0.60–0.70 mm | 600–700 µm | Outdoor veg baseline, medium pest barrier |
| 40 mesh | ~0.40 mm | 400 µm | Starts targeting aphids / medium vectors |
| 50 mesh | 0.25–0.30 mm | 250–300 µm | Whitefly standard in greenhouses |
| 60 mesh | ~0.25 mm | 250 µm | Tighter variants / higher vector pressure |
| 80 mesh | 0.15–0.19 mm | 150–190 µm | Thrips-level exclusion, ventilation penalty |
Technical Insight ：
“Mesh number” is a label. “Aperture (µm)” is the engineering spec. If you want predictable exclusion, always compare microns to thorax width.
A difference of 30–80 µm can determine whether a pest passes or is stopped.
Pest Morphology Database: Thorax Width as the Decisive Exclusion Threshold
Table: Pest thorax width → max safe aperture → recommended mesh
| Pest Category | Typical Species | Thorax Width (µm) | Required Aperture | Recommended Mesh | Notes | If underspecified… |
|---|---|---|---|---|---|---|
| Large Moths (Orchards) | Plutella, Helicoverpa, Codling Moth | >1,000 µm | ≤ 1.0 mm | 17 mesh | Ideal for orchards; excellent airflow | You gain little by going denser; airflow is usually the priority |
| Leafminers | Liriomyza spp. | ~600 µm | ≤ 0.60 mm | 25–40 mesh | Medium-density nets sufficient | Adults may still enter under high pressure if aperture is oversized |
| Flea Beetles | Phyllotreta spp. | 600–800 µm | ≤ 0.60–0.80 mm | 25–30 mesh | 0.8 mm rectangular mesh also effective | Flea beetle damage continues even if the net “looks dense” |
| Aphids | A. gossypii, M. persicae | >340 µm | ≤ 0.35–0.40 mm | 40 mesh | Good low-resistance option | Virus pressure can persist if vectors still enter intermittently |
| Whiteflies | Bemisia, Trialeurodes | 239–290 µm | ≤ 0.25–0.29 mm | 50–60 mesh | Industry standard for TYLCV control | Viral spread continues even if plants look “clean” early season |
| Thrips | F. occidentalis, T. tabaci | 192–250 µm | ≤ 0.19–0.20 mm | 75–80 mesh+ or red nets | Hardest pest to exclude | You still get thrips + virus despite “dense-looking” nets |
This table provides a comprehensive scientific decision framework for matching pests to the appropriate mesh size—now fully including 17 mesh, one of your best-selling orchard products.
Technical Insight：
Adding the “If underspecified…” outcome turns this into a real decision table. Buyers don’t just see “what works”—they see the cost of being one level too coarse.

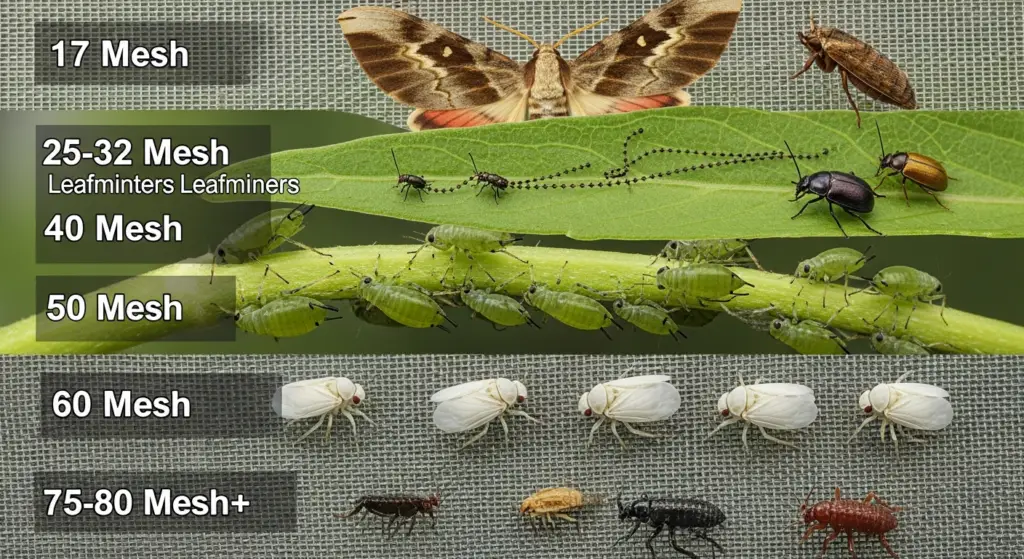

Which Mesh Size Works for Each Pest Category?
17 Mesh — Large Moths & Orchard Protection
Works for:
• Codling moth
• Diamondback moth
• Helicoverpa spp.
• Citrus leafminer (partial)
Benefits: • Excellent airflow • Minimal heat load • Compatible with anti-hail, rain, and shade systems
Highly suitable for: orchards, vineyards, berry farms.
25–32 Mesh — Leafminers & Flea Beetles
Suitable for outdoor vegetables and cole crops.
40 Mesh — Aphids
Ideal where airflow is a priority.
50 Mesh — Whiteflies
Industry standard for greenhouse vegetables.
60 Mesh — Enhanced Whitefly Control
Useful where small Bemisia biotypes exist.
75-80 Mesh+ — Thrips
Required for virus suppression (TSWV, INSV).
Table: Quick selection cheat-sheet (fast match first)
| Pest category | Recommended mesh | Why it works | Typical use |
|---|---|---|---|
| Large moths (orchards) | 17 mesh | high airflow + blocks large insects | orchards/vineyards |
| Leafminers / flea beetles | 25–32 mesh | matches ~600–800 µm class | outdoor vegetables |
| Aphids | 40 mesh | targets >340 µm class | airflow-priority systems |
| Whiteflies | 50–60 mesh | targets 239–290 µm | greenhouse vegetables |
| Thrips / virus suppression | 75–80+ or red nets | targets 192–250 µm | high-value greenhouse |
Technical Insight：
Most readers want the “fast match” first. This cheat-sheet reduces choice friction, then your detailed sections validate the decision.
Ventilation Penalty: The Trade-Off of High Mesh Density
According to your PDF, fine mesh nets cause significant airflow reduction:
• 50 mesh → moderate resistance
• 75–80 mesh → porosity drops to 30–40%
• Ventilation reduction: 35–50%
This creates:
• 1–3°C temperature increase
• Higher relative humidity
• Stronger condensation
• Elevated fungal disease risk
Dense mesh nets must be used strategically, balancing pest pressure and climate needs.
Table: Ventilation penalty (what you pay for finer mesh)
| Mesh tier | Ventilation impact | Typical microclimate effect | When it’s acceptable |
|---|---|---|---|
| 50 mesh | Moderate resistance | +1–3°C potential | when whiteflies dominate + vents/fans are adequate |
| 75–80 mesh | Porosity drops to 30–40% | higher RH + condensation + fungal risk | only if mechanical ventilation/cooling can compensate |
Technical Insight：
Mesh selection is never “pest-only.” If airflow cannot be maintained, you may trade pest pressure for disease pressure—especially Botrytis and mildew.
Engineering Innovations: Rectangular Apertures & Red Photoselective Nets
Rectangular Aperture Nets
Example: 0.25 × 0.80 mm
Advantages:
• Blocks thrips via minimum aperture
• Enhances ventilation significantly
• Suitable for hot climates
Red Photoselective Nets
Research shows:
• Thrips rely on UV+green wavelengths
• Red nets distort their visual cues
• Landing rates drop markedly
Field trials showed that red nets outperform standard 80-mesh nets.
Table: Engineering alternatives (keep exclusion without killing airflow)
| Innovation | What changes | Main benefit | Best for |
|---|---|---|---|
| Rectangular apertures (0.25 × 0.80 mm) | minimum side blocks; long side breathes | thrips control + improved ventilation | hot climates / airflow-limited structures |
| Red photoselective nets | changes visual cues | reduces thrips landing vs standard nets | thrips-prone regions, high-value crops |
Technical Insight：
If your climate can’t tolerate 80 mesh, these options are often the only practical path to “thrips-level control” without overheating the greenhouse.
Practical Mesh Selection Framework
Steps:
- Identify target pest
- Match thorax width
- Apply aperture rule
- Evaluate climate zone
- Evaluate crop sensitivity
- Check greenhouse design
- Choose mesh based on microns, not mesh count
This converts mesh selection into a precise engineering task.
Table: 7-step mesh decision checklist (turn reading into action)
| Step | What to check | Output |
|---|---|---|
| 1 | Identify target pest | dominant pest list |
| 2 | Confirm thorax width range | micron threshold |
| 3 | Apply aperture rule | max safe aperture |
| 4 | Evaluate climate zone | heat/humidity risk |
| 5 | Evaluate crop sensitivity | tolerance to +1–3°C |
| 6 | Check greenhouse design | natural vs mechanical ventilation |
| 7 | Choose by microns | final mesh spec |
Technical Insight：
This checklist makes the article “usable.” Readers can self-qualify fast—then contact you with a clearer pest/crop/climate profile (higher-quality leads).
CROSS-TOPIC
Build the Full System
Two system angles that protect performance in real houses.
Ventilation Overheat
When fine nets trap heat—how to size vents and avoid overheating.
Microclimate Tradeoffs
How tighter mesh shifts RH/leaf wetness—and how to prevent disease risk.
FAQ
Why can thrips pass through 50 mesh?
Because 50 mesh apertures (250–300 µm) are larger than thrips’ thorax width (192–250 µm), enabling sideways entry.
Is 17 mesh effective for moth control?
Yes. Most orchard moth species have thorax widths over 1 mm, making them easy to block with 17 mesh while maintaining excellent airflow.
Does 80 mesh always cause heat buildup?
Yes, unless mechanical ventilation is available. Its porosity is low, making it unsuitable for hot climates.
Why is aperture size more important than mesh count?
Because yarn thickness and weaving pattern change the actual opening size, which determines mechanical exclusion.
Can rectangular nets replace 80 mesh?
In many climates, yes. They block thrips while offering significantly better airflow.
Final Recommendations
Choose 17 mesh when:
• Targeting large moths
• Installing orchard/vineyard protection
• You need maximum airflow
Choose 50–60 mesh when:
• Whiteflies are dominant pests
• Growing tomatoes, peppers, cucumbers
Choose 80 mesh when:
• Thrips or virus vectors are present
• Climate control systems can compensate
SOLUTION BRIDGE
See Product Options
Here are practical netting options to explore by application.
Summary (for fast decision-making)
- Exclusion is a micron-level mechanics problem: aperture vs thorax width.
- Ultra-fine mesh can increase heat/RH and disease risk if ventilation is not upgraded.
- When climate limits 80 mesh, rectangular apertures or red photoselective nets can be the best compromise.
Need help identifying the correct mesh size for your pest profile?
Request a custom pest–mesh matching chart or contact our agronomy team.
Visit the Insect Netting Hub for more scientific guides and crop strategies.
References
Agricultural Insect-Proof Netting Technical Report, Assogba-Komlan et al. (2021). Evaluation of Anti-Insect Nets in Vegetable Production.
CIGR Journal. Effect of Mesh Density on Ventilation. Kyoto Prefectural Agriculture & University of Tokyo (2024). Red Photoselective Nets for Thrips.
Ludvig Svensson (2023). Insect Chest Width & Mesh Thresholds. FAO. Protected Cultivation Materials.
